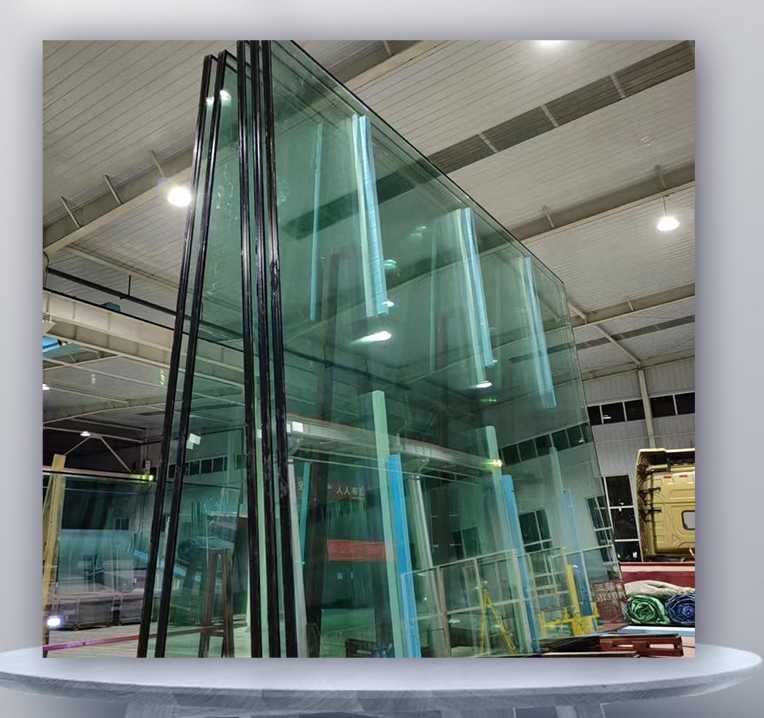

Insulating Glass

Insulating glass consists of two or more glass plies separated by a spacer to reduce heat transfer across a part of the building envelopes.
It use sealant gumming and aluminum spacers which were filled with desiccant together. With the perimeter of the spacer that gets in contact with the glass is properly sealed with primary and secondary sealants to ensure it with air/argon tight.
Insulated glass not only could save energy power, but it can get sound insulation. This kind of IGU can enhance a window's thermal insulation up to 3 times resulting in the reduction of energy consumption of up to 75% compared to a single glazed unit. Tempered insulating glass for more additional safety.
Availability:
Quantity:
  • sytech0222

  • SYTECH

  • S70060000

Made of high quality float glass or be structured with glass such as laminated, tempered, coated and low-E glass.

Energy saving reduce winter hear loss and condensation

Efficient noise reduction performance.

Lower cold emission.

High safety performance, 1.5 times stronger shocking resistance than common glass.


Glass OptionClear Glass, Low Iron Glass, Tinted Glass, Ceramic Fritted Glass
Space Thickness6A,9A,12A,14A,16A
Glass Thickness3mm-12mm
Low-E OptionSingle silver, Double silver, Triple silver
Glass ColorClear, French Green, Dark Green, Ford Blue, Dark Blue, Bronze, Euro Grey etc.
Size1524*2134mm, 1220*1830mm, 1650*2140mm, 1830*2440mm, Any cutting and design size is available.

Applications

China Insulated glass is mainly used for exterior glass decoration: heating, air conditioning, noise blocking, condensation, and buildings that require no direct sunlight and special light sources. It is widely used in residential, hotel, hotel, office buildings, schools, hospitals, shops, etc. Not only that, but insulated glass can also be used for doors and windows on trains and cars, ships, freezer cabinets, etc. It is possible to reach the laboratory standard with vacuum double-layer tempered glass.
